SE8324
Features
Wide Operating Voltage Range: 4.5V～60V
Buck, Boost, and Buck-Boost Configurations
Linear/PWM Combined Dimming
High-side Current Cense Mode
Internal Spread Spectrum Frequency Modulation for Low EMI
Average control for high accuracy
0-100% duty control, smooth current control
Over-current Protection (OCP)
Over-Voltage Protection (OVP)
Over-Temperature Protection (OTP)
Smart Thermal Gradual Protection
Applications
luminaries, RGB lamp
Automotive Lighting
LED Flashlights
The SE8324 is a one switch, multi-topology LED controller that regulates LED current from input voltage above, below or equal to the output voltage. With 4.5V to 60V input, 0V to 60V output, and seamless low noise transitions between operation regions, the SE8324 is ideal for LED driver and battery charger applications in automotive, industrial and battery-powered systems.
The 60V capability coupled with the high-side current sense enables SE8324 to be used in a wide range of applications and drive in excess of 15 LEDs in series.
The special control scheme enables SE8324 to be dimming by both linear and PWM control signal.
Additional features include thermal shutdown, cycle-by-cycle current limit, output over voltage protection and over-current protection, soft start, smart thermal gradual protection, Internal Spread Spectrum Frequency Modulation for Low EMI.

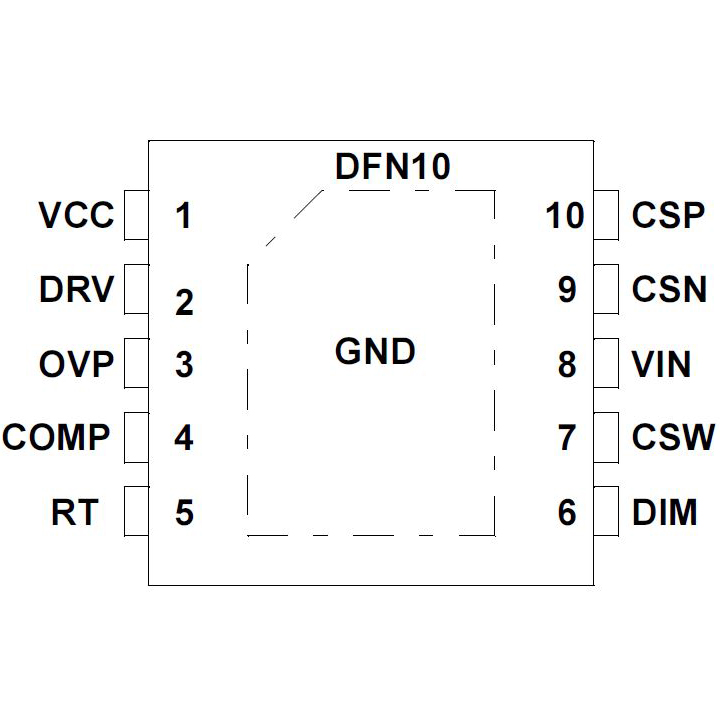

The SE8324 is available in the DFN10 package.
